Sled Parts - Traction Products

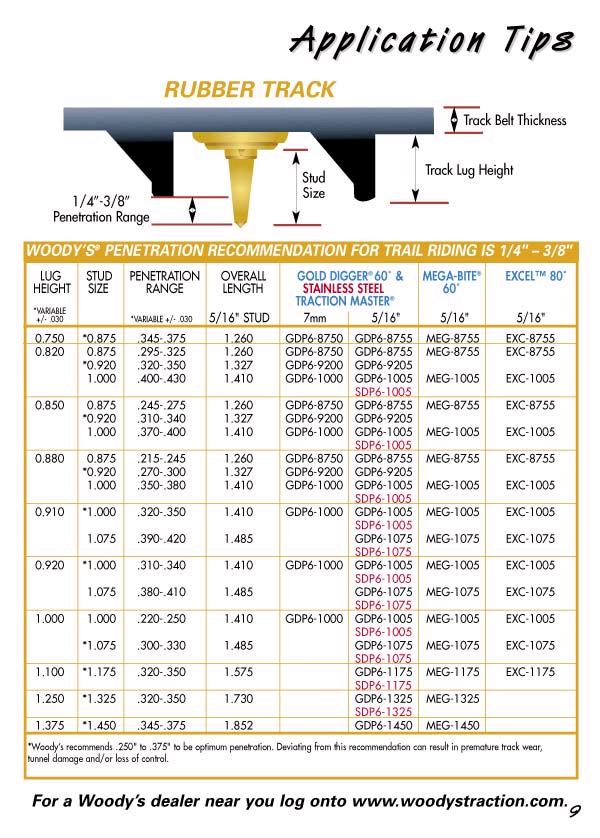

For application tips check out the Woody's website or click below.

Updated application chart here.

WOODY'S tech tips check here

Aluminum Big Nut

Big Nut

The aluminum Big Nut with a nylon insert provides added support to longer length studs. It is available in two sizes. Use ALN2-7000 for 1.450" studs and longer. Use ALN2-4500 for 1.325", 1.175" and 1.075" studs. Packaged in quantities of 24, 96





Sizes

Woody's 5/16" Grand Master 60 degree

Woodys Grand Master Stud and Support Plates for Ski-Doo Rev XP and Camoplast Single Ply Tracks.

Woodys Grand Master is equivalent to BRPs Phantom Stud.

This larger head stud and resulting larger support plates are now being sold by Woodys under the name Grand Master. This TESTED and OEM APPROVED stud and support plate is designed with a larger 1.200 head to provide a larger anchor to distribute pressure over a wider area on the single ply track.

Grand Master Studs and Grand Digger Support Plates Sold Separately.

The Grand Master 1.075", 1.325", 1.450", and 1.575" are now packaged in quantities of 12, 48, 84 and 500. The 1.325",  1.450", and 1.575" studs are packaged with ALN2-4500 Big Nuts.

The single round and square Grand Digger support plates are packaged in quantities of 12, 48, 84. The Grand Double Digger is available in packages of 12, 48 and 500.

GRAND MASTER STUDS AND GRAND DIGGER SUPPORT PLATES ARE APPROVED FOR SINGLE PLY TRACKS ONLY.

Woody's 5/16" Grand Master Pro studs & nuts (NEW)

Size
$119.95

(48) GMPP1075 w/std nylock nuts(NEW)

(48) GMPP1325 w/tall nylock nuts(NEW)

(48) GMPP1450 w/tall nylock nuts (NEW)

(48) GMPP1575 w/tall nylock nuts (NEW)

Woody's 5/16" Grand Master studs & nuts

Size

GMP1075 w/std nylock nuts

GMP1325 w/tall nylock nuts

GMP1450 w/tall nylock nuts (NEW)

GMP1575 w/tall nylock nuts (NEW)

Woody's 5/16" Signature Series 60 degree

*All Woody's studs 1.325 and longer will be packaged with Woody's Aluminum Big Nuts. Stud packages of 1.325 and 1.450 will include the short Big Nut, ALN2-4500.



Woody's combines the advantages of stainless steel with their performance proven designs at a competitive price! The high corrosion resistance allows you to use the Signature Series™ in rigorous environments and maintain an attractive bright appearance. The stainless steel combined with the 5/16" shank and the 15/16" head of the Signature Series™ is resistant to impact even at extreme temperature variations ensuring you a reliable grip on the trail with the 60° carbide tip.
SSP-1005 1.000"

Starting at $1.33 each

includes locknut

(multiples of 24)



Stainless Steel

SSP-1075

1.075"

SSP-1175

1.175"

SSP-1325*

1.325"

SSP-1450*

1.450"

Woody's 5/16" Gold Diggers 60 degree

*All Woody's studs 1.325 and longer will be packaged with Woody's Aluminum Big Nuts. Stud packages of 1.325 and 1.450 will include the short Big Nut, ALN2-4500. Lengths 1.575 and longer will include the tall Big Nut ALN2-7000.



GDP6-8755

0.875"

Starting at $1.50 each

includes locknut

(multiples of 24)

GDP6-9205

0.920"

GDP6-1005

1.000"

GDP6-1075

1.075"

GDP6-1175

1.175"

GDP6-1325*

1.325"

GDP6-1450*

1.450"

GDP6-1575* 1.575"


Woody's 5/16" Mega-Bites 60 degree

*All Woody's studs 1.325 and longer will be packaged with Woody's Aluminum Big Nuts. Stud packages of 1.325 and 1.450 will include the short Big Nut, ALN2-4500. Lengths 1.575 and longer will include the tall Big Nut ALN2-7000.



Starting at $1.50 each

includes locknut

(multiples of 24)

MEG-1005

1.000"

MEG-1075 1.075"

MEG-1175 1.175"

MEG-1325* 1.325"

MEG-1450* 1.450"

MEG-1575* 1.575"

MEG-1740* 1.740"

Snocross Competition stud

RACE1860

Designed for 1.75" tracks

$190

(bag of 96)

includes big locknuts

(multiples of 96)





Woody's 7mm Wide Body Chisel Tooth

CAP1325

$90

includes ALN4500 big nut

(multiples of 48)







TC-7 5/16"

$10.00 TRACK DRILL

Studding Accessories

All Backers - Click Here

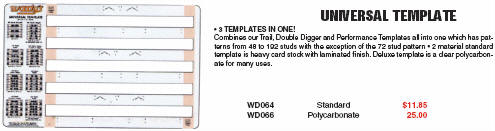

Woody's Universal Template (3 templates in 1). For 121" track only (WD066 & WD064.

WD064 Standard $13

  • Fits track sizes 15" x 121"
  • Heavy card stock or polycarbonate
  • Multiple options for center belt studding
  • Double Digger and Single Digger patterns
  • Stud Pattern Amounts: 48, 54, 72, 96, 120, 144, 168, & 192
  • Basis for additional patterns referenced in our Product Application Guide
  • Read the instruction or tech tip for recommended stud patterns.


New Single Ply Templates

252STEMP ARCTIC CAT TEMPLATE 2.52 PITCH $15.95
286STEMP SKI-DOO SINGLE PLY TEMPLATE 2.86 PITCH $19.95
300STEMP ARCTIC CAT TEMPLATE 3.0 PITCH $19.95

New Two Ply Template

286T-TEMP SKIDOO TEMPLATE 2.86 TWO PLY 120" & 137" $21.95

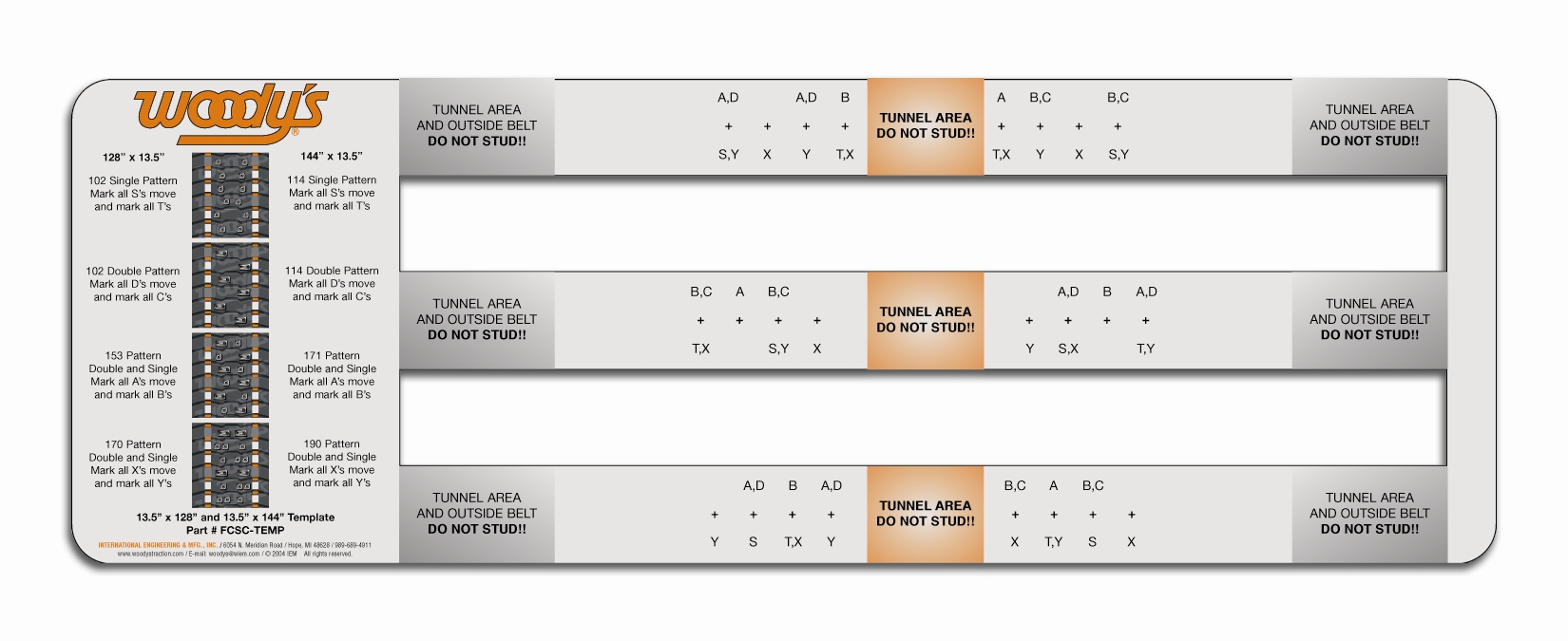

FIRECAT TEMPLATE

WD068

$16.00

TRACK MARKER

WD040

$7.95

128" TEMPLATE

128-TEMP

$22.95

SQUARE INDEX TOOL

WD045

$17.95

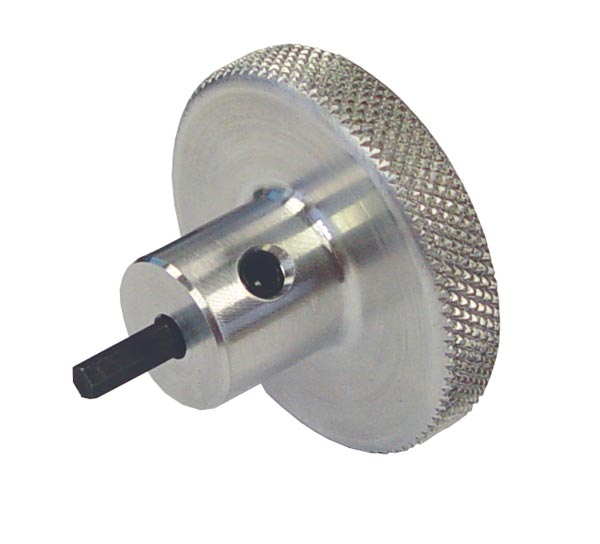

STUD HEX TOOL

SH-1

$19.95

TRACK TENSION TOOL

WD035

$35.95

TUNNEL PROTECTOR

550-004 (1" skidoo) shortrack

$25 pair

TUNNEL PROTECTOR

555-005 (1"tall and 1" wide skidoo) New this season - Renegade models

$30 pair

WOODY'S BANNER

4'X8'

$20

Others available, please email for pricing.
