ATV Parts - Bumpers and Winches



We also carry a full line of replacement parts for Warn

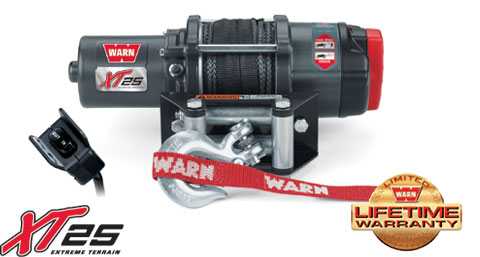

ATV Winches: WARNŽ XT25

$369 complete with mount kit and roller fairlead.

Make
Year & Model

PUSH THE LIMITS AND RIDE WITH CONFIDENCE USING THIS VERSATILE WINCH
You can hit the trail with confidence when you've got the premium XT25. Its lightweight, easy-to-handle synthetic rope is great for pulling an ATV out of a sticky situation, and the rope's flexibility is perfect for plow lifting. Its fast line speed means you'll be out of trouble and back on the trail in a hurry. There's no reason to worry about rollback either, thanks to our patent-pending disc brake. Full sealing protects the XT25 from the elements, and its dependable all-metal 3-stage planetary geartrain and efficient electrical system provide long, powerful pulls with less battery drain.

XT25 SPECS/PART NUMBERS
Part Number: 75500
Rated Line Pull: 2500 lbs. (1134 kgs)
Motor: 12V DC, .9 hp (.7 kW) permanent magnet, Sealed
Control: Sealed handlebar-mounted mini-rocker switch
Geartrain: All-metal 3-stage planetary
Gear Ratio: 154:1
Clutch (freespooling): Sliding pin and ring gear
Brake: patent-pending disc brake
Rope: 50' Synthetic, 3/16" diameter (15 m, 4.76mm diam.)
Drum Diameter/Length: 2.0"/2.9" (52mm / 74mm)
Fairlead: Roller
Recommended Battery: 12 Amp/hour minimum
Battery Leads: 8 gauge
Duty Cycle: Intermittent
Warranty: Limited Lifetime (valid in USA and Canada only)
Mounting Bolt Pattern: 3.0" x 4.88" (76 x 124mm)
Winch Dimensions: 13.12" L x 4.51" D x 4.69" H (33.3cm L x 11.5cm D x 11.9cm H)
Winch Weight: 13.4 lbs. (6.1 kgs)

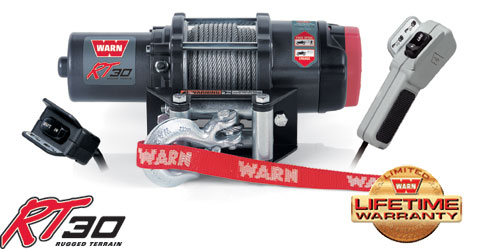

ATV Winches: WARNŽ RT30

$389

FOR BIGGER ATVs AND HEAVIER PULLING JOBS, THIS WINCH HELPS YOU GET THE JOB DONE IN THE FIELD AND ON THE TRAIL.
With a mammoth 3,000 lb. pulling capacity, 50' of durable aircraft-grade wire rope, and a convenient handheld remote, the RT30 has the features you need to get the job done in the field and on the trail. No matter what the situation, the RT30's full sealing means the winch is prepared to do battle against the elements, and it's all-metal 3-stage planetary geartrain will provide countless years of smooth, reliable operation. The patent-pending brake prevents rollback and will hold your vehicle securely on inclines. A standard handheld wired remote and handlebar-mounted mini-rocker switch increases your winching options so you can get the job done right.



ATV Winches: WARNŽ RT40

 $469

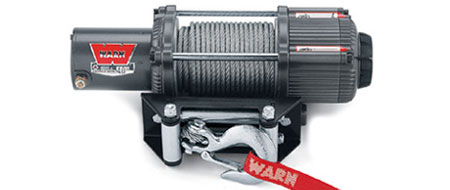

WARNŽ 4.0ci UTILITY WINCH
Utility vehicles do so much work they deserve their own winch: the new WARN 4.0ci. It's a first cousin to the popular new generation WARN ATV winches that have impressed everyone from riders to writers.

The 4.0ci's bruising power comes from a 1.5hp high-torque motor. It pulls 55' of wire rope with enough power to tackle everything from self recovery to moving downed trees. This utility winch also features the Express InstallTM wiring system and a specially designed contactor pack. All in all, the WARN 4.0ci makes utility vehicles even more indispensable.


Limited Lifetime Warranty



4.0ci SPECS:
Part Number: PN 77000
Rated Line Pull: 4000 lbs. (1814 kg) single-line
Motor: 12V DC, 1.5hp (1.1 kW) permanent magnet
Control: Remote Control, 10 ft. (3.0m) lead
Geartrain: 3-stage planetary
Gear Ratio: 136:1
Lubrication: Aeroshell #17
Clutch (freespooling): Cam activated
Brake: Automatic Mechanical
Drum Diameter/Length: 2.0"/4.7" (51mm/119mm)
Weight: 21 lbs. (9.5 kg)
Wire Rope: 55 ft, 7/32" diameter (16.8m, 5.5mm diam.)
Fairlead: Roller
Recommended Battery: 500 CCA minimum for winching
Battery Leads: 6 gauge
Duty Cycle: Intermittent
Finish: Argent gray powder coat
Warranty: Limited LIFETIME Warranty



WARNŽ RT30 ATV WINCH

$399

Just itching to get into a mud hole near you is a brand new winch design ready to be put to work on the big ATVs. Everything is new about this winch. Everything, that is, except the Warn Industries heritage.

Eight sealed areas protect the winch from water and contaminant infiltration. Steel alloy gear housing provides exceptional durability, strength and rigidity from the winching forces generated by the gear train torque during winching. The new gear train design provides greater efficiency and pulling strength than any other 3,000 lb. capacity ATV winch on the market.

Limited Lifetime Warranty!

3.0ci SPECS:
Part Number: PN 76000
Rated Line Pull: 3000 lbs. (1360 kgs.) single-line
Motor: 12V DC, .9hp (.7kW) permanent magnet
Controls: Remote Control, 10' (3.0m) lead Handlebar mounted Mini-rocker switch
Geartrain: 3-Stage Planetary
Gear Ratio: 136:1
Lubrication: Aeroshell #17
Clutch (freespooling): Cam activated
Brake: Dynamic. Mechanical brake is available as an option PN 65327. (CE version includes mechanical brake).
Drum Diameter/Length: 2.0"/2.9" (51mmx75mm)
Weight: 19 lbs. (8.6kgs.)
Wire Rope: 50', 3/16" diameter (15m, 5mm diam.)
Fairlead: Roller
Recommended Battery: 12 Amp/hour minimum for winching
Battery Leads: 6 gauge
Finish: Argent grey powder coat
Warranty: Limited lifetime




WARNŽ RT25 ATV WINCH

$310

The new 2.5ci ATV winch has brand new controls. The handlebar mounted mini-rocker switch utilizes a multi-position mounting bracket for a true all-ATV fit. The switch is potted and sealed to provide years of reliable service in all conditions. The contactor and a 6-gauge wiring provide superior performance for the most demanding of ATV users. The 3-stage planetary gear has increased efficiency, improved load distribution and is quieter. There's also the 2" drum diameter for increased wire rope life. With a 1-year limited warranty, the 2.5ci winch is an incredible value!


2.5ci SPECS:
Part Number: PN 75000,
Rated Line Pull: 2500 lbs. (1134 kgs.) single-line
Motor: 12V DC, .9hp (.7kW) permanent magnet
Control: Handlebar mounted Mini-rocker switch
Geartrain: 3-Stage Planetary
Gear Ratio: 136:1
Lubrication: Aeroshell #17
Clutch (freespooling): Cam activated
Brake: Dynamic. Mechanical brake is available as an option PN 22142. (CE version includes mechanical brake).
Drum Diameter/Length: 2.0"/2.9"
Weight: 15.4 lbs. (7.0 kgs.)
Wire Rope: 50', 3/16" diameter (15m, 5mm diam.)
Fairlead: Roller
Recommended Battery: 12 Amp/hour minimum for winching
Battery Leads: 6 gauge
Finish: Grey
Warranty: 1-year limited




WARNŽ 1.5ci ATV WINCH

$230

Compact design and a new price point make the 1.5ci the perfect entry-level winch for lightweight ATV's and sport bikes.

The 1.5ci's efficient motor and gear train deliver 1,500 pounds of pulling power with minimal amp draw. This lightweight dynamo also features a mechanical brake, all-weather contactor, 3-stage planetary gear train, freespooling clutch and hawse fairlead. When you add it up, it's a lot of winch in a little package - ideal for smaller bikes with big ideas.


1.5ci SPECS:
Part Number: 66200
Rated Line Pull: 1500 lbs. (680 kgs.)
Motor: 12V DC, .04hp permanent magnet
Control: Handlebar mounted Mini-rocker switch
Geartrain: 3-Stage Planetary
Gear Ratio: 103:1
Lubrication: Aeroshell #17
Clutch (freespooling): Cam activated
Brake: Mechanical brake standard
Drum Diameter/Length: 1.5"/3.0"
Weight: 11.5 lbs. (5.2 kgs.)
Wire Rope: 50', 5/32" diameter (15m, 4mm diam.)
Fairlead: Hawse
Recommended Battery: 12 Amp/hour minimum for winching
Battery Leads: 10 gauge
Duty Cycle: Intermittent
Finish: Grey
Warranty: 1-year limited

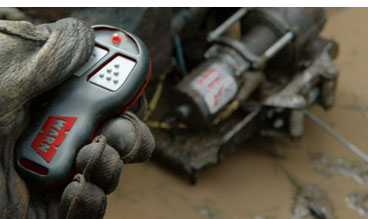

NEW! WARN Wireless Control System
-CONTROL YOUR WINCH WITH NO STRINGS (OR WIRES) ATTACHED

Warn Industries has developed a new Wireless Control System to be used with most WARNŽ powersports winches. You spoke, WARN listened. This Wireless Control System is designed from the ground up to suit your needs. The system is quick and easy to install, thanks to an integrated antenna and the included mounting hardware. The system allows you to operate your winch from anywhere within a 50' radius, increasing your recovery options.
Price: N/A
  •
  • Works with any WARN Powersports winch with a contactor and a mini-rocker control switch
  •
  • Operates your winch from anywhere within a 50' radius
  •
  • Built-in antenna and included hardware allows for quick and easy installation
  •
  • Activation process and recessed buttons prevent accidental winch activation
  •
  • Two color LED indicates when the system has powered on (green) and when the system has begun winching (red). Blinking red LED indicates low battery life.
  •
  • System automatically powers off to conserve battery life
  •
  • Waterproof and rugged receiver ignores interference from other signals
  •
  • Ergonomically designed handheld remote has large buttons for easy use - even when wearing gloves
  •
  • Works at all vehicle voltage levels that allow winch operation
  •
  • All components are weatherproof

    Please email to check current stock and application
